Name: Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
SKU: TW011
Price: 999 USD
Availability: InStock

Casa > produtos > Fios de tungstênio revestidos de ouro >

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

gold plated tungsten wire for electronics

premium micron tungsten wire

scientific research tungsten wire

Marca:

WINNER

Certificação:

ISO9100

Número do modelo:

TW011

Contacte-nos

Peça umas citações

Detalhes do produto

Tipo de produto:

Fio de ligação

Espessura do revestimento:

0,0003mm

Material:

Tungstênio

Revestimento:

Ouro

Medidores de comprimento:

500/1000

Método de ligação:

Ultrassônico

Faixa de temperatura:

-40 ° C a 200 ° C.

Acabamento de superfície:

brilhante

Condutividade:

98%

Tamanho do pacote:

100 metros

Força de união:

Alto

Pacote:

Carretel

Destacar:

gold plated tungsten wire for electronics

premium micron tungsten wire

scientific research tungsten wire

Termos do pagamento & do transporte

Quantidade de ordem mínima

1 unidade

Preço

999

Detalhes da embalagem

Rolar, embalagem neutral ou com logotipo OEM

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C, União Ocidental, T/T

Habilidade da fonte

100000 rolos por mês

PRODUTOS CONEXOS

Fio de filamento de tungstênio micrônico banhado a ouro de alta pureza disponível a um preço acessível

Obtenha o melhor preço

Vídeo

Gold Plated Tungsten Wire Gold Plating On Tungsten Line Thread String

Obtenha o melhor preço

Vídeo

Ultra Premium Gold Plated Micron Tungsten Wire For Electronic And Scientific Research

Obtenha o melhor preço

High-frequency Customized Diameter Gold Plated Coated Tungsten Spooled Wire

Obtenha o melhor preço

Contacte-nos

Contato agora

Descrição do produto

Product Description

Gold-plated tungsten wire, the surface condition is golden shiny tungsten wire, high temperature resistance, high melting point, low coefficient of thermal expansion, which is suitable for the use of tungsten wire and tungsten heaters
Gold-plated tungsten wire looks better, and the surface is brighter than black tungsten/scheelite wire and sprayed tungsten wire. In a deeper sense, the stability of gold-plated tungsten wire is much higher than that of ordinary tungsten wires
Uses: Gold-plated tungsten wire is used to replace the corrosive tungsten wire and tungsten aluminum wire for photocopier electrodes
Gold-plated tungsten wire can also be used as an ideal electronic material, which can be widely used in scientific research fields such as high energy physics and meteorology

Product Specifications

Material	Tungsten
Purity	Wu≥ 99.99%
Gold-plated thickness	0.3um
Wire diameter	0.02mm/0.03mm/0.04mm/0.05mm/0.06mm/0.07mm/0.1mm/0.2mm
Length	1000/2000 meter (cut from roll)

Gold plated tungsten wire properties (Theoretical)
Compound Formula	W
Molecular Weight	183.84
Appearance	Metallic wire
Melting Point	3410 °C
Boiling Point	5660 °C
Density	19.3 g/cm3 (25 °C)
Solubility in H2O	N/A
Electrical Resistivity	4.9 μΩ-cm, (20 °C)
Exact Mass	183.951 g/mol
Monoisotopic Mass	183.951 g/mol

Key Features

Shiny golden surface condition - brighter than black or white tungsten wire
Exceptional high temperature resistance and high melting point
Low coefficient of thermal expansion
Superior corrosion resistance compared to ordinary tungsten wire

Applications

Gold-plated tungsten wire serves as an electrode in photocopiers, replacing corrosion-resistant tungsten wire and tungsten aluminum wire. It also functions as an ideal corrosion-resistant electron emission material with applications in high-energy physics, meteorology, and other scientific research fields.

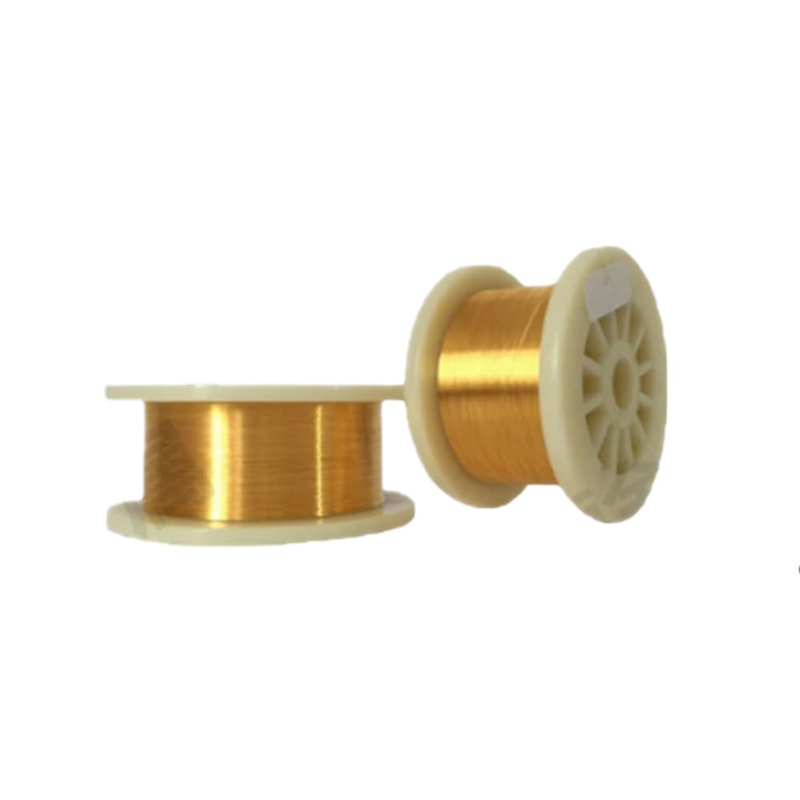

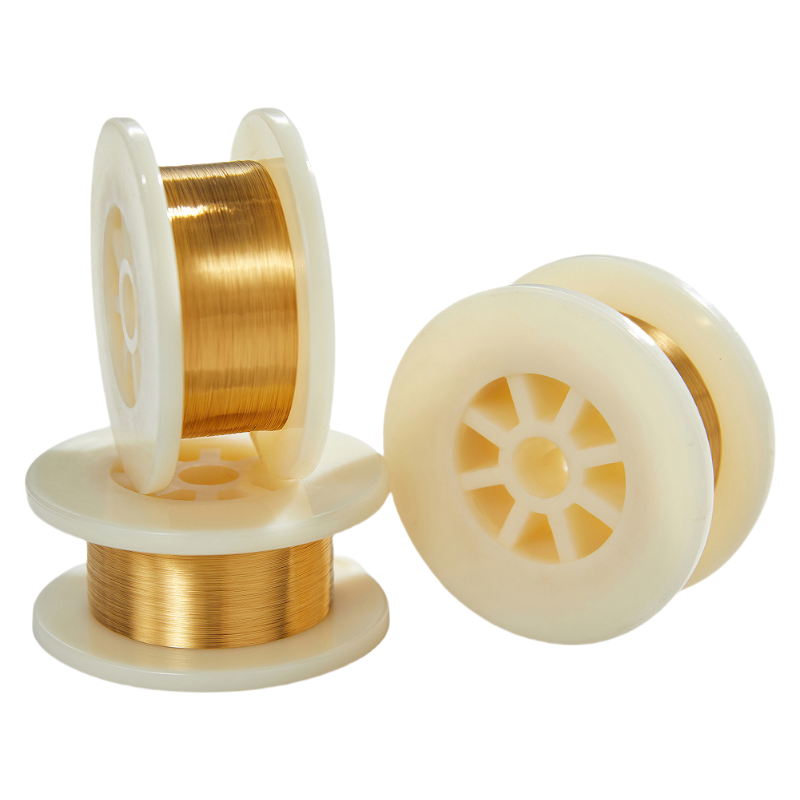

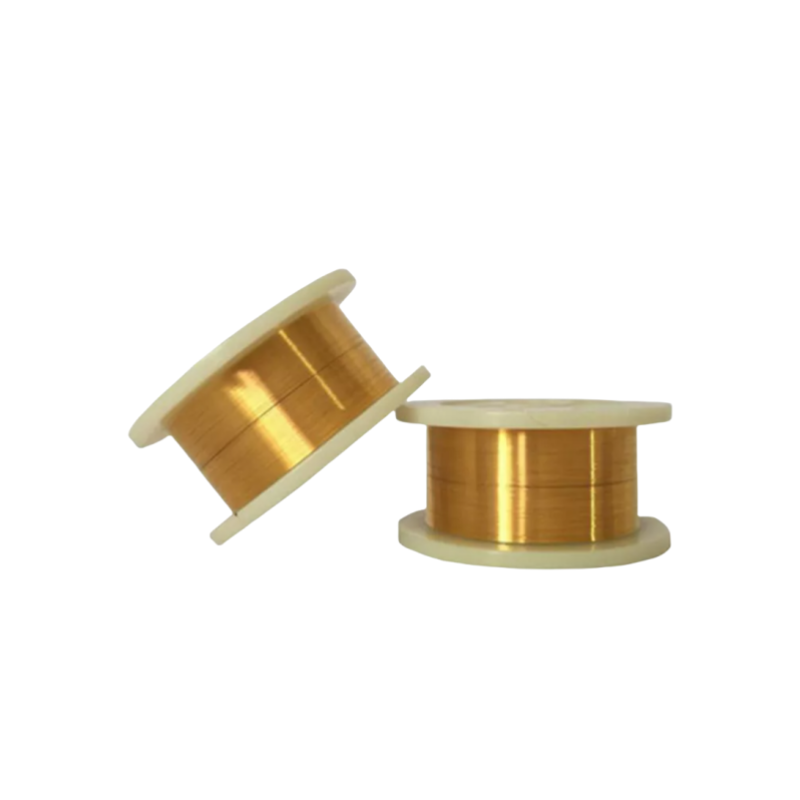

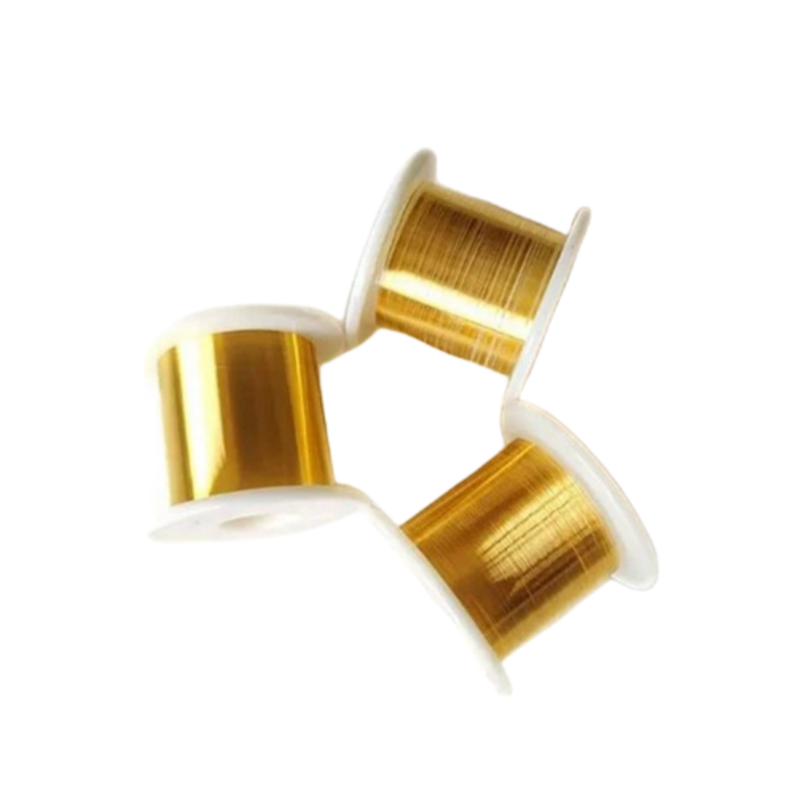

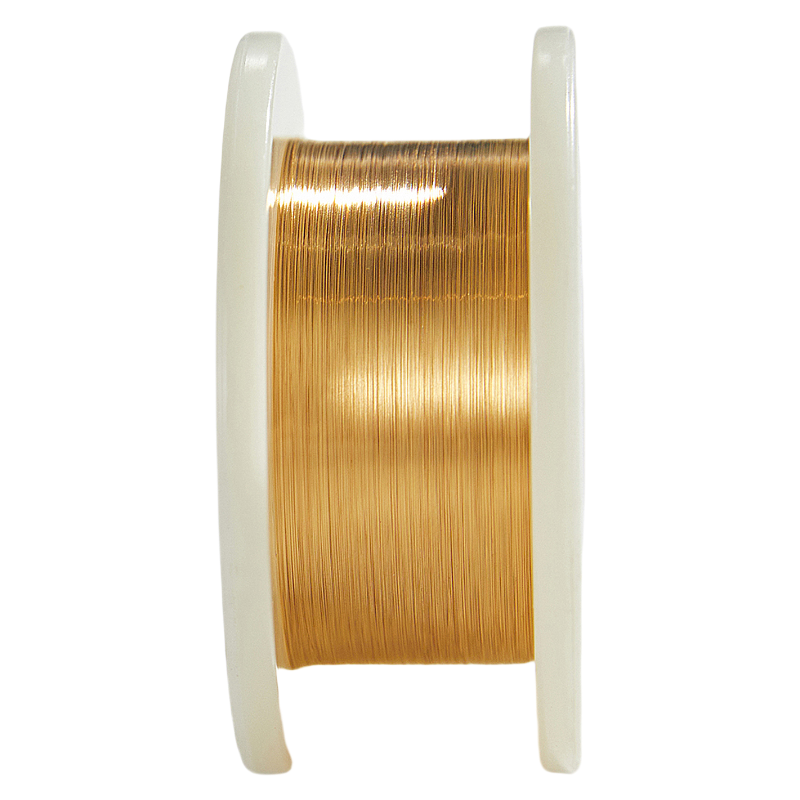

Product Images
