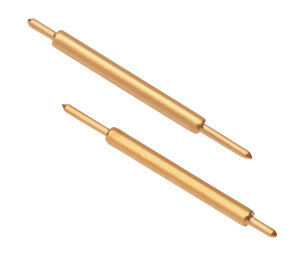

Name: Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Casa > produtos > sondas de ensaio de mola >

Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures

spring loaded test probe double ended

ICT FCT test fixture probe

spring test probe with warranty

Lugar de origem:

China

Marca:

WINNER

Certificação:

ISO9100

Contacte-nos

Peça umas citações

Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures

Detalhes do produto

Nome do produto:

sonda de ensaio de mola

barril:

PB, dourado

Êmbolo Inferior:

BeCu/SK4, banhado a ouro

Êmbolo SUPERIOR:

SK4 (Seja Cu)/banhado a ouro

Primavera:

SWPB(SUS)/banhado a ouro

Disponibilidade:

Tamanhos personalizados disponíveis

Revestimento:

Ouro banhado

Classificação atual:

Resistência de contato:

100 mohms no máximo

Largura de banda:

-0,84 dB a 19,6 GHz

indutância:

1,47nH

Captação:

1,77pF

Golpe total:

3,6 mm

Duração nominal:

1,0 mm

Força da mola:

25 gramas @ 1,0 mm

A vida mecânica excede:

200k

Destacar:

spring loaded test probe double ended

ICT FCT test fixture probe

spring test probe with warranty

Termos do pagamento & do transporte

Quantidade de ordem mínima

3000pcs

Preço

999

Detalhes da embalagem

Embalagem neutral ou com logotipo OEM

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C, União Ocidental, T/T

Habilidade da fonte

100000 rolos por mês

PRODUTOS CONEXOS

China Supplier Double Ended Pogo Pin Spring Loaded Probe for PCB Testing | Custom Available

Obtenha o melhor preço

China Supplier Double ended Pogo Pin Spring Loaded Probe UF-FT064BD816-001

Obtenha o melhor preço

Spring Loaded Test Probe Double Ended for ICT, FCT Test Fixtures

Obtenha o melhor preço

Double Ended Pogo Pin Spring Loaded Probe for PCB Testing & Semiconductor Inspection

Obtenha o melhor preço

Contacte-nos

Contato agora

Descrição do produto

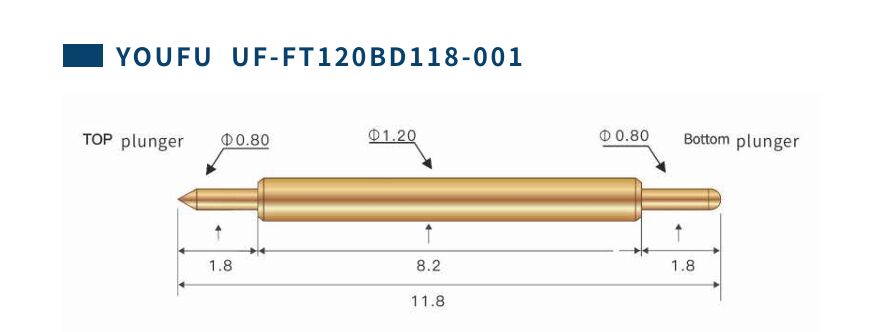

YOUFU UF-FT120BD118-001 Dual Head Spring Loaded Pogo Pins

High precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities for semiconductors and SiC wafers.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission

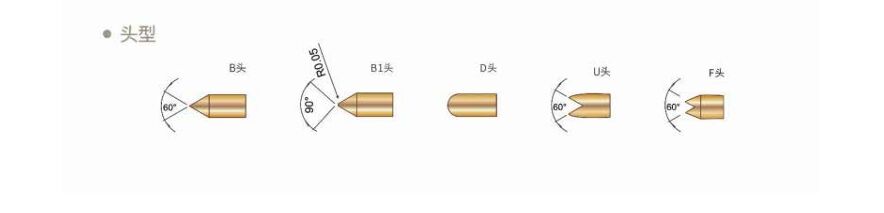

Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

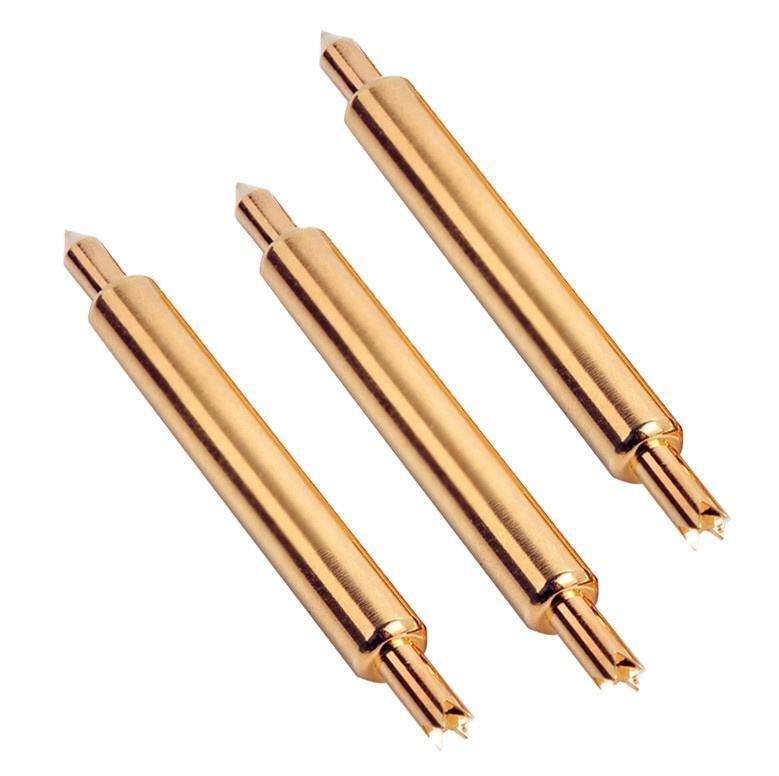

Product Images

Detailed Component Illustration

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process
