Name: Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 999 USD
Availability: InStock

Casa > produtos > sondas de ensaio de mola >

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for Precision Testing

Gold Plated Spring Test Probe

2A Current Rating Test Probe

Custom Sizes Pogo Pin

Lugar de origem:

China

Marca:

WINNER

Certificação:

ISO9100

Contacte-nos

Peça umas citações

Detalhes do produto

Nome do produto:

sonda de ensaio de mola

barril:

PB, dourado

Êmbolo Inferior:

BeCu/SK4, banhado a ouro

Êmbolo SUPERIOR:

SK4 (Seja Cu)/banhado a ouro

PRIMAVERA:

SWPB(SUS)/banhado a ouro

Disponibilidade:

Tamanhos personalizados disponíveis

Revestimento:

Ouro banhado

Classificação atual:

Resistência de contato:

100 mohms no máximo

Largura de banda:

-0,56 dB a 19,6 GHz

indutância:

1,6nH

Captação:

1,44pF

Golpe total:

0,55 mm

Duração nominal:

0,35 mm

Força de mola:

24,7 gramas a 0,35 mm

A vida mecânica excede:

200k

Destacar:

Gold Plated Spring Test Probe

2A Current Rating Test Probe

Custom Sizes Pogo Pin

Termos do pagamento & do transporte

Quantidade de ordem mínima

3000pcs

Preço

999

Detalhes da embalagem

Embalagem neutral ou com logotipo OEM

Tempo de entrega

5-8 dias úteis

Termos de pagamento

L/C, União Ocidental, T/T

Habilidade da fonte

100000 rolos por mês

PRODUTOS CONEXOS

High Quality Brass Spring Loaded 4 Pin PCB Contact Pin for Electronic Device

Obtenha o melhor preço

Double-head Test Probe Spring Contact Pin for IC Testing YOUFU UF-FTO55FD030-002

Obtenha o melhor preço

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for PCB Testing

Obtenha o melhor preço

Gold Plated Spring Test Probe with 2A Current Rating and Custom Sizes for IC Testing

Obtenha o melhor preço

Contacte-nos

Contato agora

Descrição do produto

High Quality Switch Contact Pin Test Probe YF DE2-055BB30-01C0

Precision spring-loaded semiconductor test pins designed for reliable performance in demanding testing applications, featuring high efficiency BGA testing capabilities.

Key Product Features

High Conductivity Gold Plating: Gold-plated plunger and barrel ensure low contact resistance and stable signal transmission
Multiple Tip Styles: Available in B tip (60° cone), U tip, D tip, and fully customized geometries
Durable Spring Structure: Stainless steel spring (SUS material) provides stable working stroke and reliable contact force
Custom Manufacturing: OEM/ODM accepted with fast delivery from our factory

Product Images

Detailed Component Illustration

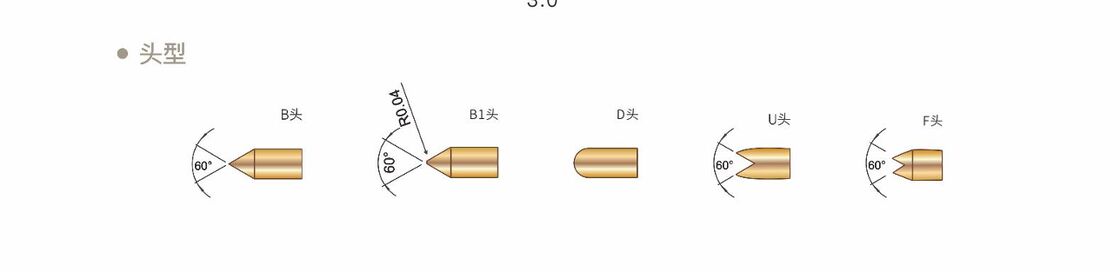

Comparison of different test probe tip types and configurations

Customization Options

SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD. offers comprehensive customization for our brass barrel stainless steel spring test probes:

Custom diameters to match your specific requirements
Custom plating thicknesses for optimal conductivity and durability
Custom mechanical specifications tailored to your application

All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.

Manufacturing Process

Our probe manufacturing facility

Quality control inspection

Packaged probes ready for shipment
