P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

5A Current Spring Test Probe

50m Ohm Resistance Pogo Pin

33.35mm Length PCB Testing Pin

Lugar de origem:

China

Marca:

WINNER

Certificação:

ISO9100

Contacte-nos
Peça umas citações
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing
Detalhes do produto
Nome do produto:
sonda de teste de tamanho padrão
Manger:
Becu
barril:
Latão
Primavera:
Aço inoxidável
Disponibilidade:
Tamanhos personalizados disponíveis
Revestimento:
Ouro banhado
Quantidade mínima:
100 unidades
Destacar:

5A Current Spring Test Probe

,

50m Ohm Resistance Pogo Pin

,

33.35mm Length PCB Testing Pin

Termos do pagamento & do transporte
Quantidade de ordem mínima
1 unidade
Preço
999
Detalhes da embalagem
Embalagem neutral ou com logotipo OEM
Tempo de entrega
5-8 dias úteis
Termos de pagamento
L/C, União Ocidental, T/T
Habilidade da fonte
100000 rolos por mês
PRODUTOS CONEXOS
Bom preço Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac on-line

Spring Test Probe P156 H, 100Pcs Spring Loaded Test Pin, 2.36mm Brass Spring Probe with 9 Claws, Industrial Supplies for Testing and Replacement, Durable and Accurate Computer Mac

Obtenha o melhor preço
Bom preço Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact on-line

Spring Test Probes, 100Pcs P125-Q High Accuracy Round Pogo Pins for PCB Board Testing Contact

Obtenha o melhor preço
Bom preço 100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing on-line

100 Pieces P75-E2 Cone Head Spring Test Probe with 16mm Length and 1.4mm Boring Size for PCB Testing

Obtenha o melhor preço
Bom preço P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing on-line

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing

Obtenha o melhor preço
Contacte-nos
Contato agora
Descrição do produto

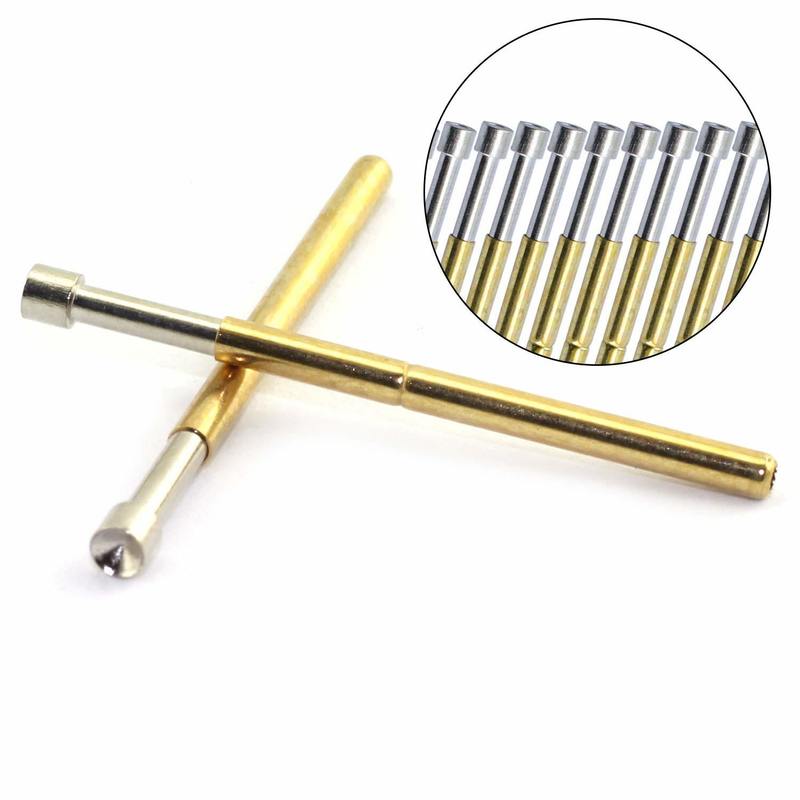

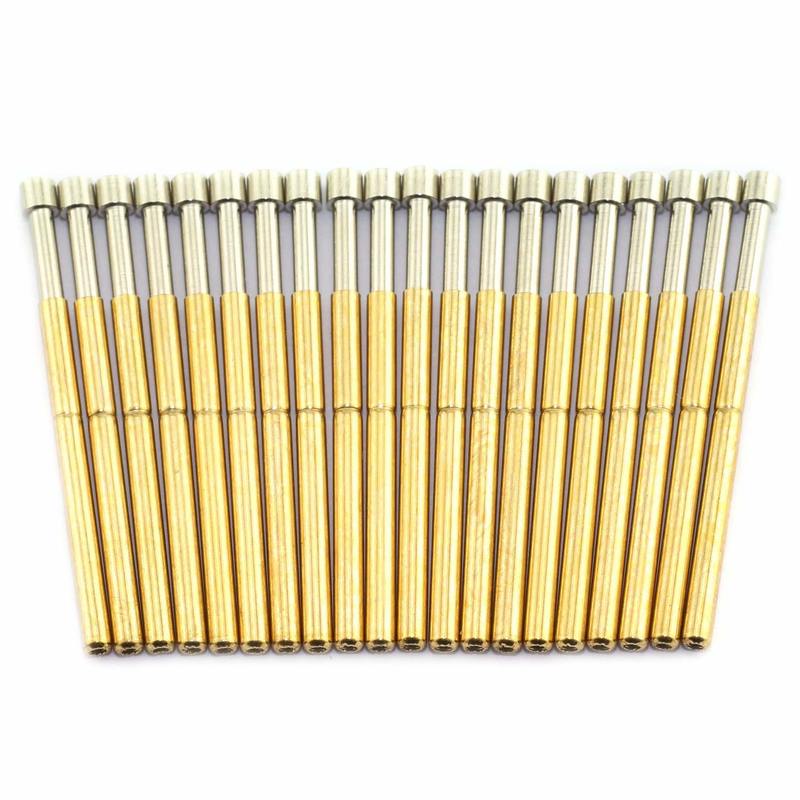

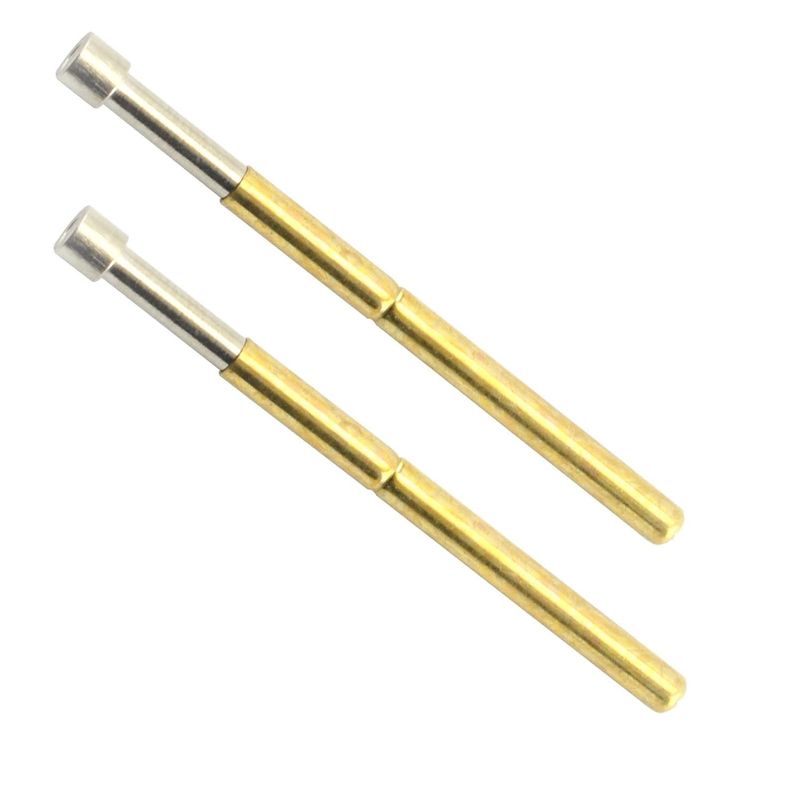

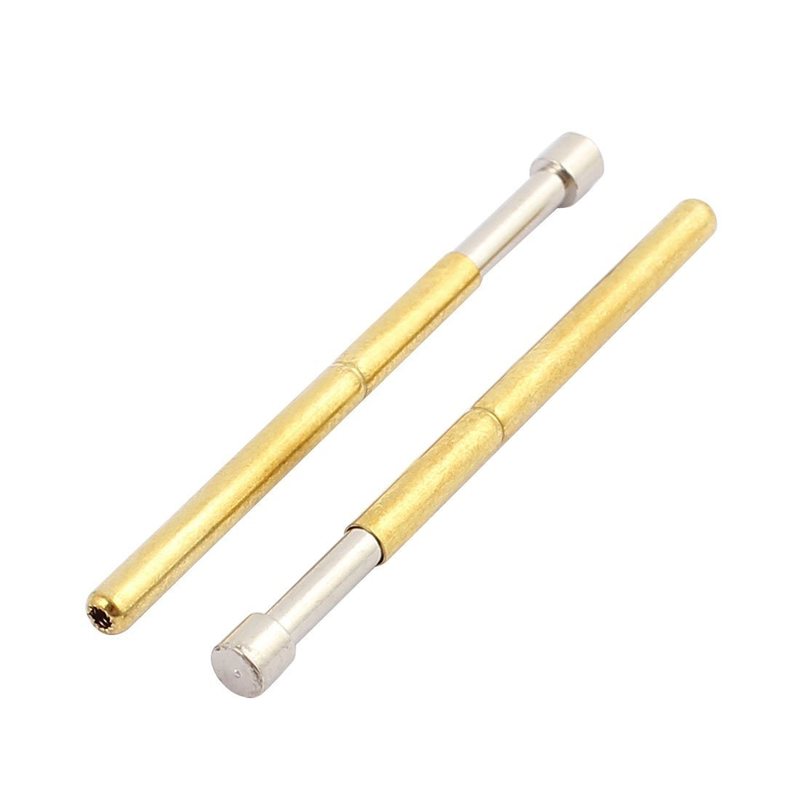

P125-A Spring Test Probe Pogo Pin

High-quality replacement probes for extending the life of your test station with concave tip head design.

Key Features
  • Concave tip head design for precise contact
  • Premium materials: heat-treated beryllium copper plunger, gold-plated phosphor bronze barrel, and gold-plated stainless steel wire spring
  • Excellent conductivity and durability for repeated use
  • Ideal for PCB conductive testing and component access on printed circuit assemblies
  • Perfect for testing long lead feet, terminals, and wrapping posts

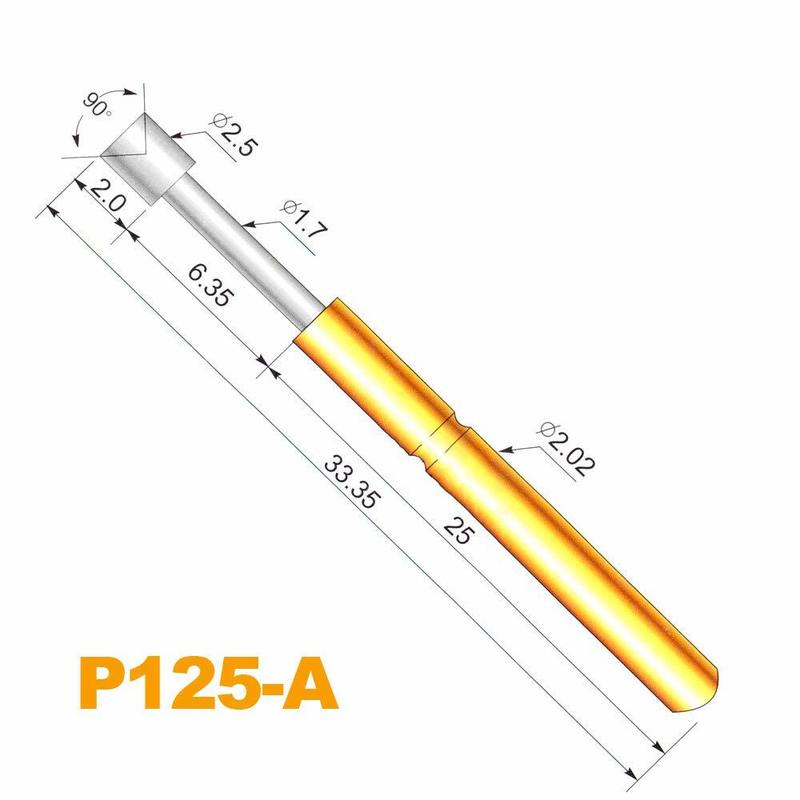

Technical Specifications
Model P125-A
Head Diameter 2.5mm
Tube Diameter 2.02mm
Shank Diameter 1.7mm
Length 33.35mm
Sheath Diameter 2.36mm
Drill Size 2.4mm
Minimum Test Distance 3.18mm
Full Stroke 6.35mm
Spring Pressure 180g
Current 5A
Resistance 50m Ohm
Color Gold + Silver
Test Probe Selection Guide

Test probes are available from many manufacturers with similar constraints. When selecting a test probe receptacle, the tip choice is the most critical consideration.

P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 0
Detailed illustration of test probe components and construction
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 1
Various test probe tip types
Customization Options

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we offer comprehensive customization to meet your specific requirements:

  • Custom diameters to match your specifications
  • Custom plating thicknesses for optimal conductivity and durability
  • Custom mechanical specifications tailored to your application
All products include material traceability documentation and certificate of analysis for quality assurance. Contact us to request samples or a quotation for your specific application requirements.
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 2
Our probe manufacturing facility
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 3
Quality control inspection
P125-A Spring Test Probe Pogo Pin with 5A Current 50m Ohm Resistance and 33.35mm Length for PCB Testing 4
Packaged probes ready for shipment
