Name: Gold-Plated ICT FCT Spring Test Probes for Circuit Boards GKS-100 Series
Brand: SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD.
Price: 500.00 USD
Availability: InStock

Casa > produtos > Spring Test Probes >

Gold-Plated ICT FCT Spring Test Probes for Circuit Boards GKS-100 Series

Gold-Plated Spring Test Probes

ICT FCT Test Probe

Spring Probes for Circuit Boards

Lugar de origem:

China

Marca:

WIINNER

Certificação:

ISO9001

Contacte-nos

Peça umas citações

Gold-Plated ICT FCT Spring Test Probes for Circuit Boards GKS-100 Series

Detalhes do produto

Cor:

Preto, preto/vermelho, Branco, Vermelho e Preto

Nome do produto:

Proba de ensaio

Tipo:

TIC / FCT (teste em circuito e teste de função)

Série:

GKS-100

Grelha:

2.54 mm

Garantia:

12 meses, 1 ano

OEM/ODM:

Ordem de boas-vindas

Produto:

Em existência

Temperatura de funcionamento:

0℃~40℃

Pacote:

selecionável, Caixa de Papelão

Mínimo Temperatura:

- °C 40

Temperatura máxima:

+ 80 °C

Comprimento da sonda:

40mm

Comprimento total::

33,4 milímetros

Diâmetro do cano::

1.37 mm

Curso máximo::

6,35 milímetros

Pré-carga de primavera::

0.78 N

Altura do colarinho::

Força da mola no curso de trabalho::

3 N

Curso de trabalho::

4,3 milímetros

Disponibilidade:

Tamanhos feitos sob encomenda disponíveis

Destacar:

Gold-Plated Spring Test Probes

ICT FCT Test Probe

Spring Probes for Circuit Boards

Termos do pagamento & do transporte

Quantidade de ordem mínima

1pc

Preço

1-999

Detalhes da embalagem

Rolo, embalagem neutra ou com logotipo OEM

Tempo de entrega

5 a 8 dias úteis.

Termos de pagamento

T/T, L/C, Western Union

Habilidade da fonte

1000000 rolos pelo mês

PRODUTOS CONEXOS

Contacte-nos

Contato agora

Descrição do produto

Factory Supply Gold Plated Test Probes

Well-established test probes for contacting PCBs

For optimal contact to the test points (e.g. pads, vias, and pins), various tip styles with various diameters and finishes are available.

Various spring forces available as well as versions with stainless steel springs suitable for high temperatures

Used for setting the optimum stroke conditions in the test fixture, various installation heights can be achieved by combining test probes and receptacles

Electrical data

Current load capacity / rated current :5 A

Typical resistance (Ri) :< 20 mOhm

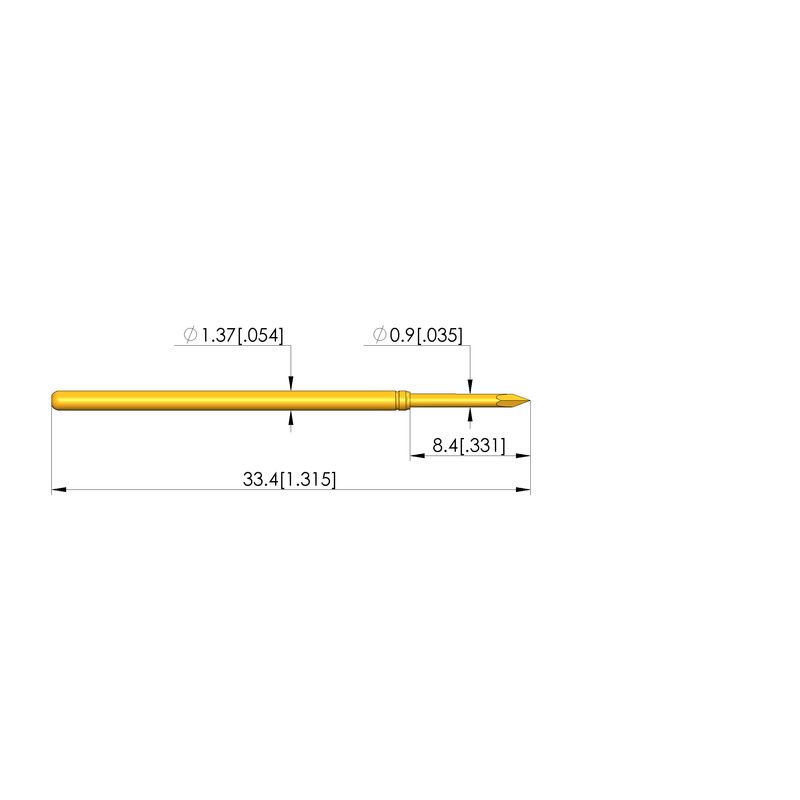

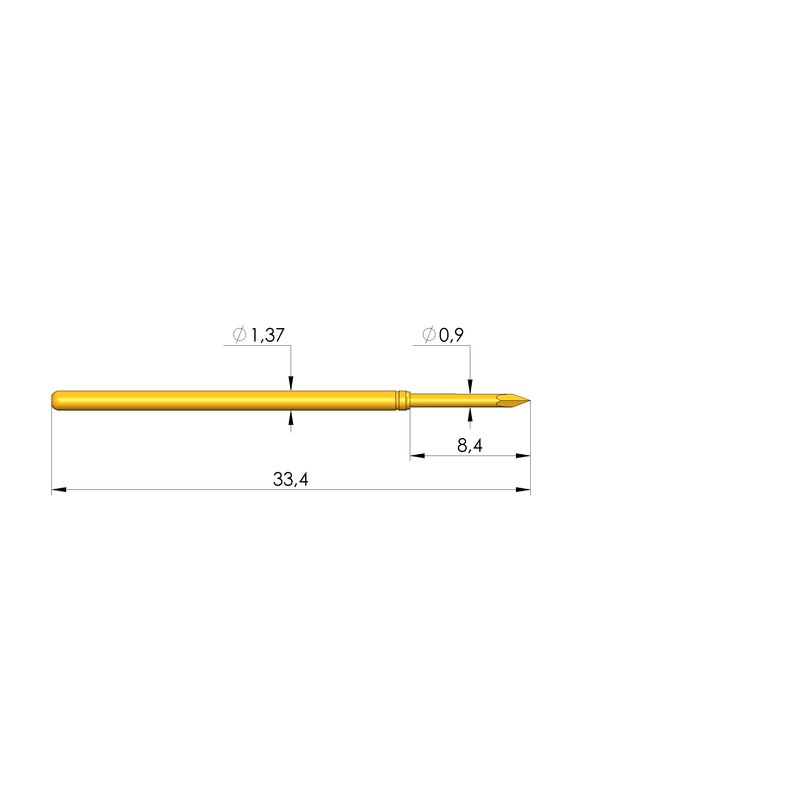

Mechanical data

Total length :33.4 mm

Barrel diameter :1.37 mm

Maximum stroke :6.35 mm

Spring pre-load :0.78 N

Collar height :00

Spring force at working stroke :3 N

Working stroke :4.3 mm

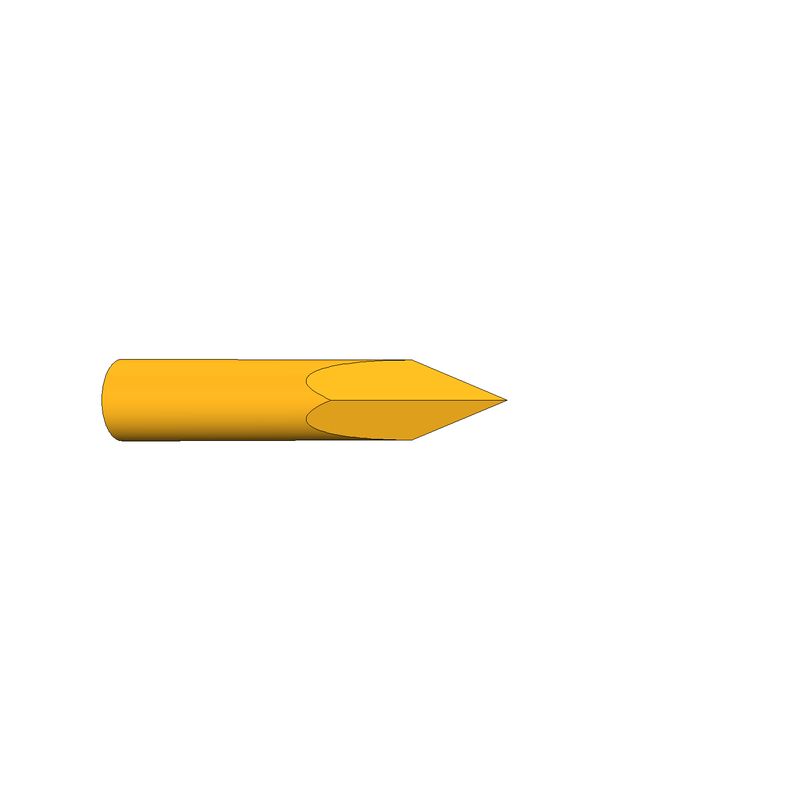

Tip style data

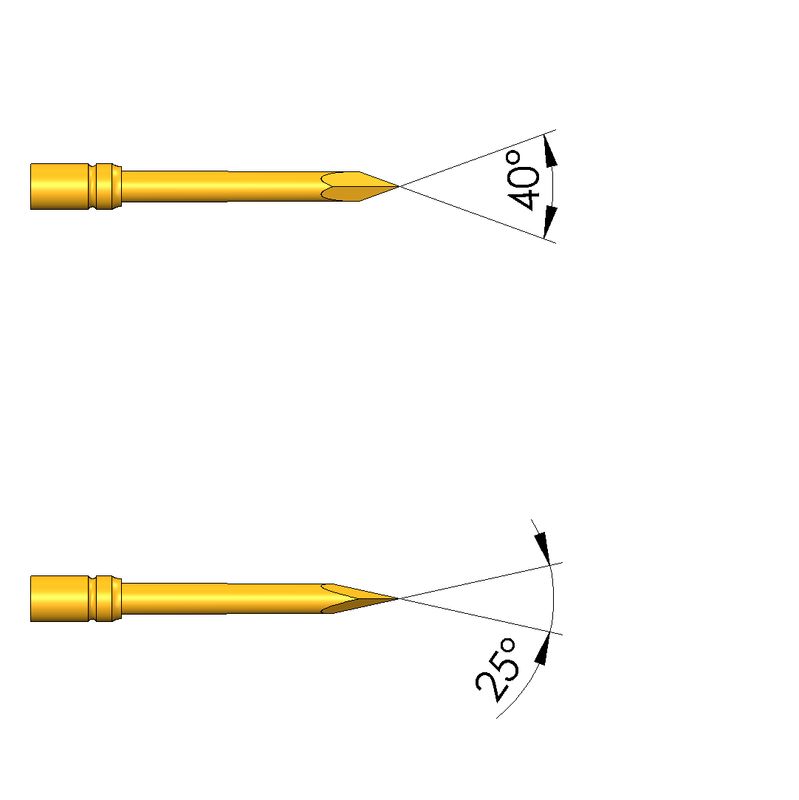

Tip style :91 dagger, self-cleaning

Tip diameter :0.9 mm

Tip style surface :A gold

Tip style material :2 steel

Test Probe Selection
Test probes also have many different manufacturers, but all have similar constraints. When choosing a test probe receptacle, the most important decision is what tip to use.

The number of tips that are available can be overwhelming. From past experiences, we found that we typically only use a couple of different tips.
* Crown
* Spear
* Cup
* Cone

At SICHUAN WINNER SPECIAL ELECTRONIC MATERIALS CO., LTD., we provide customized diameters, plating thicknesses, and mechanical specs upon request. Every reel is delivered with material traceability and certificate of analysis.

Contact us to request samples or a quotation for your application needs.
